Dynomite Diesel Products Explains The Exact Science Of Manufacturing An Injector Nozzle

Most gearheads love bolting on fresh parts but rarely think about the actual science behind manufacturing a nozzle. The crew at Dynomite Diesel Products (DDP) splits hairs every single day to make sure your fuel atomizes perfectly. The journey starts the moment a blank piece of steel arrives at their shop. They immediately send those raw blanks out to get checked with a specialized gun that verifies the exact metallurgical alloys before any real cutting begins.

Nailing The Perfect Clearance

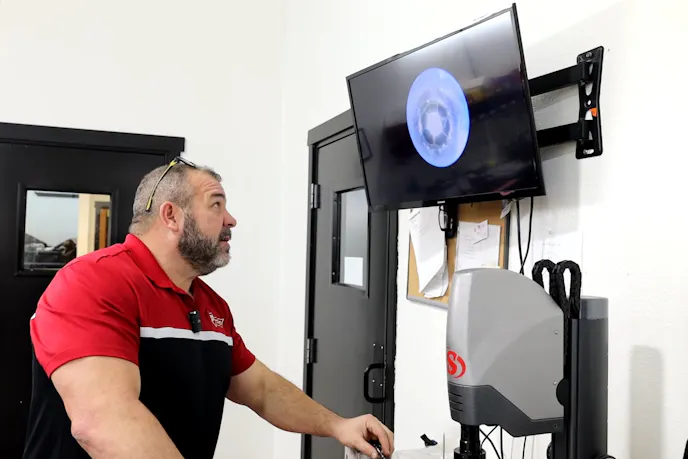

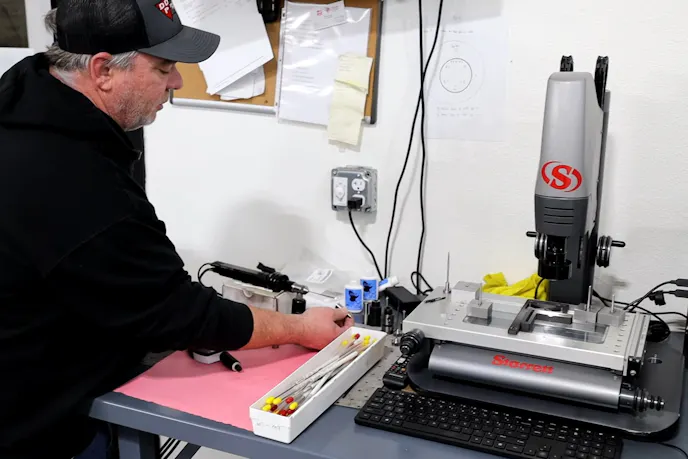

Once the raw metal passes that strict test, the heavy precision work starts. Achieving the right fit between the needle and the valve requires insane accuracy. Lenny Reed of DDP explained: “We do that using some air gauging and that is measured to an exact spec that’s measured micron.” They aim for a tiny 4-micron clearance. That incredibly tight tolerance keeps everything functioning smoothly under extreme engine pressure.

The Danger Of Bad Geometry

Getting the internal shapes wrong leads to catastrophic engine failures out on the road. Reed pulled out a damaged customer sample to show how crowding the spray holes makes the fuel feed unevenly. Reed noted: “On the inside, this hole is going to get fed first, that hole is going to get fed second, and the rest of these are even lower in the sack.” That slight delay in fluid delivery ruins the entire combustion cycle and quickly melts expensive pistons.

The Reality Of EDM Cutting

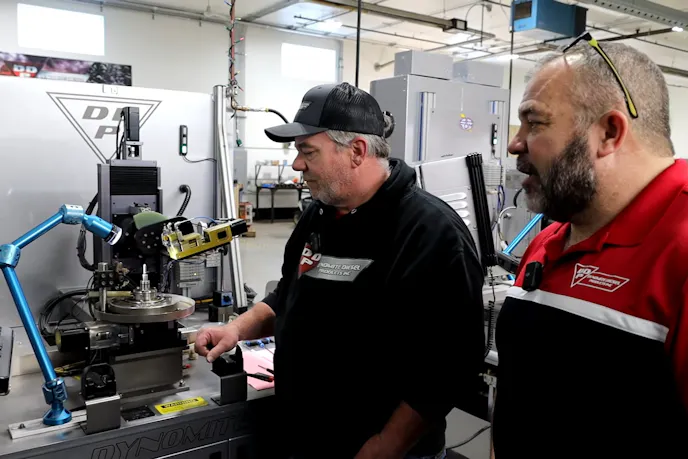

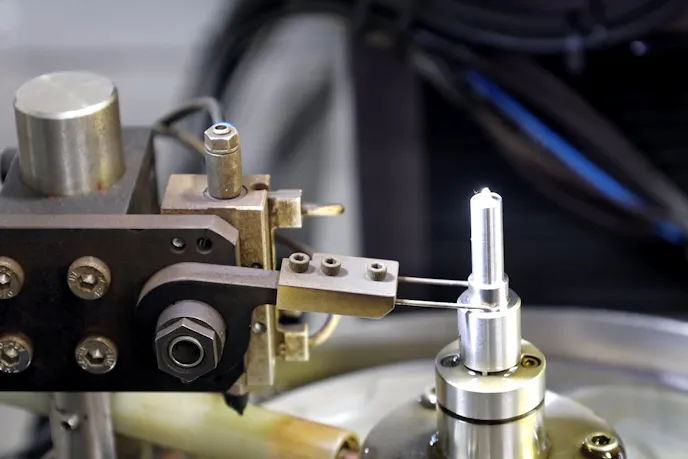

The actual cutting method used while manufacturing a nozzle surprises a lot of enthusiasts. The shop processes hundreds of units daily on an advanced 6-axis machine. Instead of using a traditional drill bit, they use a microscopic tungsten wire submerged in deionized water. Reed stated: “It’s literally oxidizing its way through the nozzle.” There is zero physical contact during this stage. After the cutting finishes, they use abrasive flow machining to smooth the harsh internal edges and boost the overall fluid velocity.

Final Touches When Manufacturing A Nozzle

Understanding all these tedious steps really gives you a massive appreciation for the final product. It takes so much more than just punching bigger holes in steel to make high-horsepower reliable. The intricate process of manufacturing a nozzle at DDP requires balancing fluid dynamics and constantly chasing microscopic measurements. When you finally drop those finished injectors into your custom diesel truck, you know they will survive the heavy abuse because the shop absolutely refused to cut corners during the machining phase.
