For owners of common-rail Cummins-powered Ram trucks, injector wear is an inevitable part of the ownership experience. Even the legendary 5.9-liter and later 6.7-liter platforms—engines known for durability and longevity—are not immune to declining injector performance over time. Rough idle, excessive smoke, and reduced efficiency often point to one root cause. Dynomite Diesel Products (DDP) developed its Patriot Series injectors to address exactly that, offering a premium remanufactured solution designed to restore—and refine—factory performance.
Covering The Evolution Of The Cummins Platform
The Patriot Series lineup spans four key applications within the Cummins ecosystem, covering both early and later generations of common-rail technology. These include the 2003–2004 5.9L Cummins (Part #DDP305-STK), the updated 2004.5–2007 5.9L (Part #DDP325-STK), the first-generation 6.7L from 2007.5–2012 (Part #DDP67-STK), and the more advanced 2013–2018 6.7L engines (Part #DDP6713-STK).
Each of these platforms reflects a step forward in fuel system complexity. The 5.9-liter trucks are widely regarded as some of the most reliable diesel pickups ever built, yet their injectors are a known wear item over time. The introduction of the 6.7-liter brought higher injection pressures and emissions controls, increasing the demand for precision fuel delivery. In both cases, maintaining injector performance is critical to preserving drivability and efficiency.
A Better-Than-Stock Philosophy
While Patriot Series injectors are stock-output replacements, their internal calibration and construction elevate them beyond typical remanufactured units. Each injector is built to tighter-than-OEM tolerances, reducing cylinder-to-cylinder variation and improving fuel delivery consistency.
The benefits are immediately noticeable. Engines equipped with Patriot injectors typically exhibit smoother idle quality, improved throttle response, and cleaner combustion with reduced smoke output. Rather than increasing fuel quantity for added power, the Patriot Series focuses on delivering fuel more precisely restoring lost performance while enhancing overall efficiency.
Inside The Remanufacturing Process

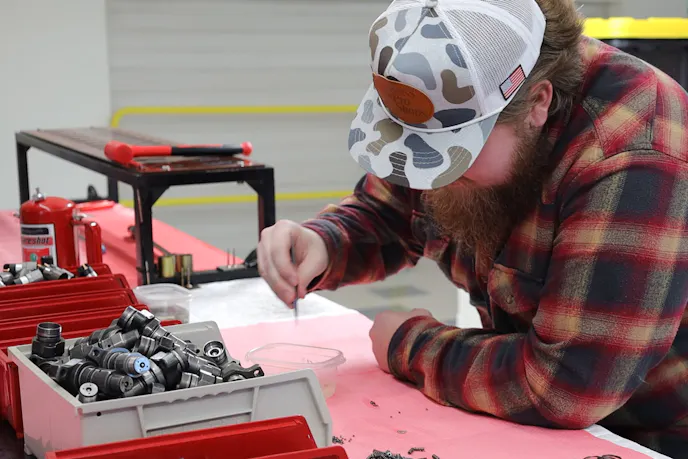

The process begins at the core bench, where used injectors are completely disassembled. Bodies and armature assemblies are stripped down, and all seals and O-rings are removed. Components are then sorted and subjected to a multi-stage cleaning process designed to eliminate contaminants and prepare each part for reuse.
Following cleaning, every component is carefully inspected. Worn or damaged parts are removed from circulation, ensuring that only serviceable pieces move forward into assembly. This early-stage quality control is critical to the consistency of the final product.
Precision Assembly And Component Control

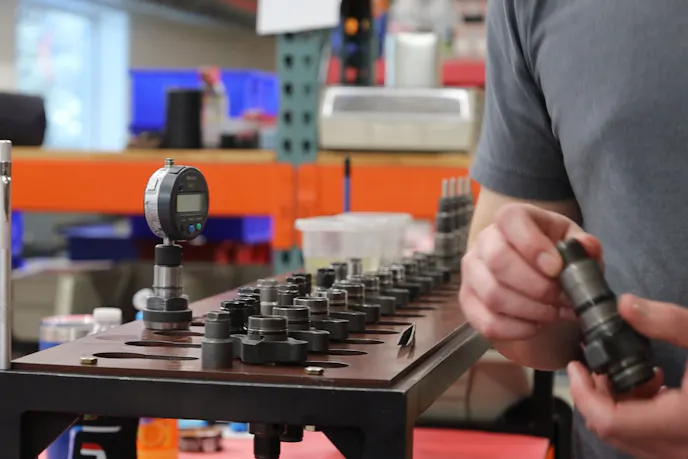

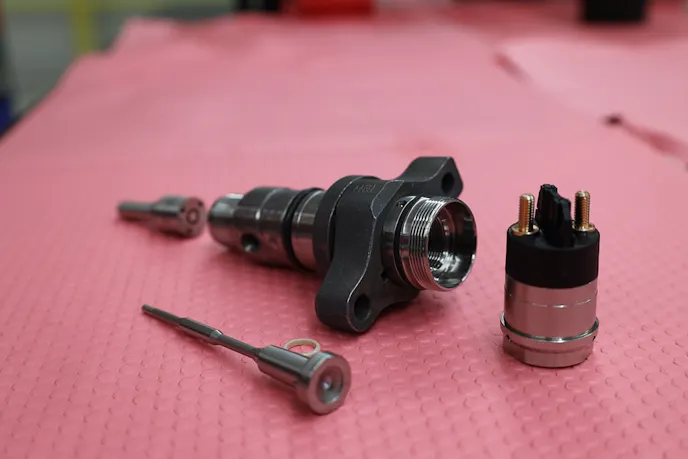

Assembly is carried out with a strong emphasis on accuracy. Shims are measured and processed to exact specifications, while control valves are inspected under magnification to verify surface integrity. Armature assemblies are rebuilt and installed into freshly cleaned bodies along with new O-rings, seals, and control valves.
Critical parameters such as armature stroke and air gap are then set to precise standards. These measurements play a key role in injector timing and consistency, directly influencing engine performance.
Nozzle installation follows, with technicians using a pneumatic press to measure spring force before installing a new Bosch nozzle. Each nozzle is torqued to specification, ensuring proper spray pattern and atomization for efficient combustion.
Testing To Bosch And Beyond

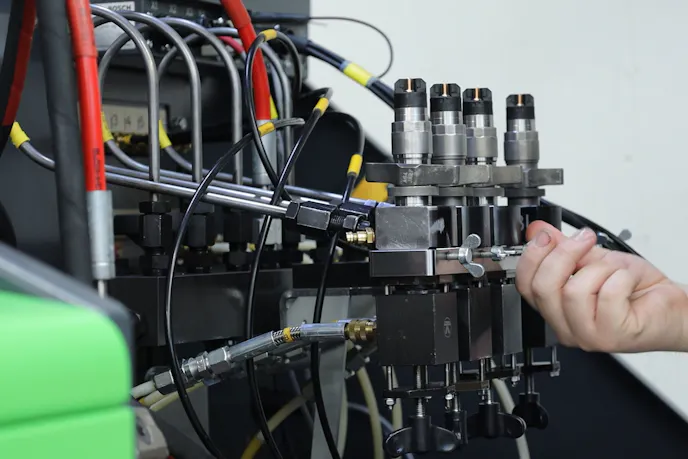

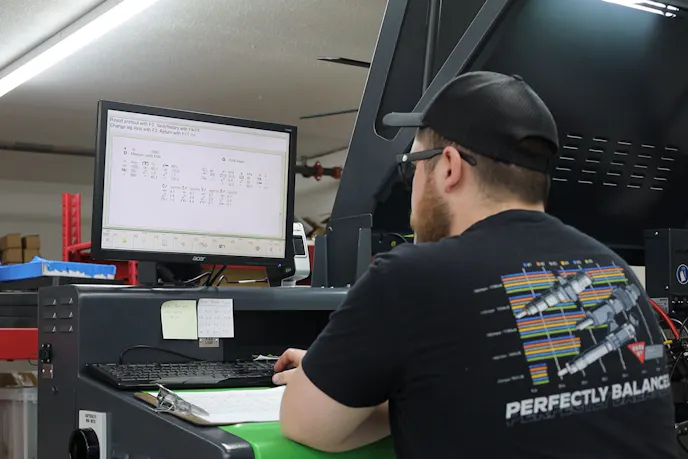

Every completed injector is validated on a Bosch 708 test bench. Here, each unit must meet both Bosch-certified testing protocols and Dynomite Diesel’s own stricter internal standards. Injectors that pass are approved for use, while any that fail are disassembled, corrected, and re-tested until they meet all criteria.

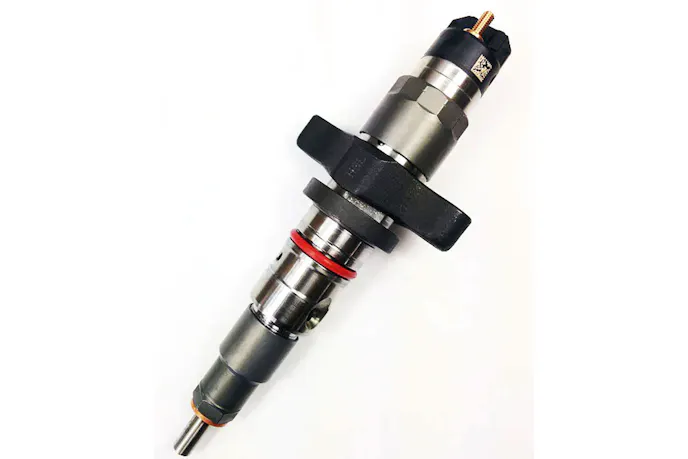

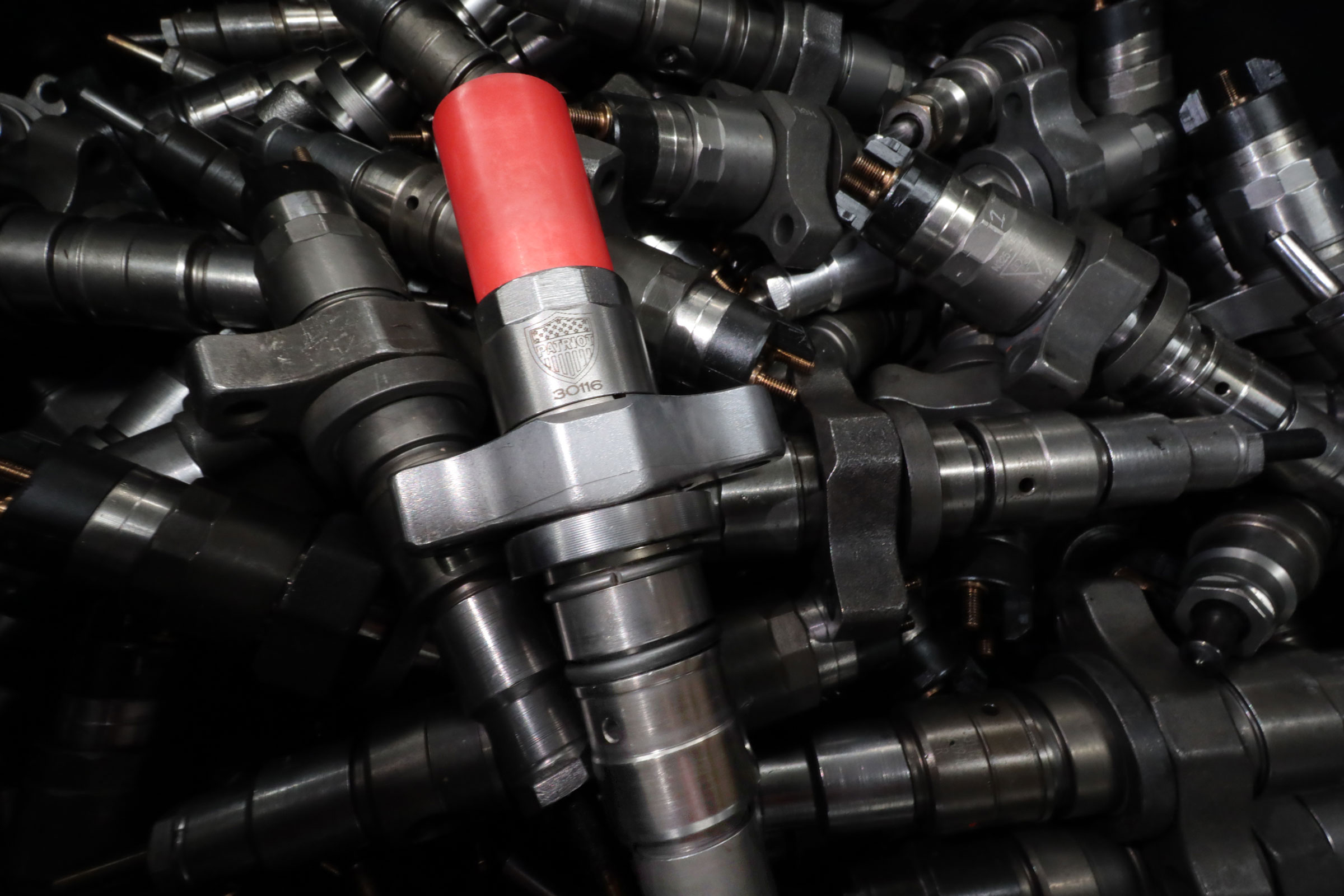

The finished injector includes a new solenoid, new control valve, new Bosch nozzle, and a new copper washer. Each unit is laser-etched for traceability before final packaging.
Restoring Performance Where It Matters
In an era where replacement parts can vary widely in quality, the Patriot Series stands out by emphasizing process control, component quality, and calibration accuracy. For owners of 5.9-liter and 6.7-liter Cummins trucks, it offers a way to restore smooth operation and dependable performance without stepping into the realm of aftermarket power upgrades.
