Pressurized LBZ: Are BD Diesel’s New Venom Lift Pumps What You Need?

As you may know, the Duramax-powered Chevrolet and GMC trucks aren’t equipped with lift pumps. These 6.6-Liter Duramax engines rely on an internal gear pump to draw the fuel up to the fueling components. The CP3 and Cp4 pumps rely on a steady supply of fuel to lubricate the internal bearings. Because of the lack of fuel pressure support, when the fuel supply runs out or cavitates, they will fail. If you haven’t priced one of those high-pressure pumps lately, sit down before you do. They are not cheap.

BD Diesel Performance routinely comes out with something to help out every kind of truck regardless of the issue. Here, we check out their latest fix, the Venom Duramax Fuel Lift Pump. The BD Lift Pump is built in-house and uses ball bearings to reduce the parasitic drag within the pump allowing the pump to operate efficiently and quietly. A fuel pressure regulating diaphragm is used to improve fuel pressure regulation, allowing for more consistent fuel pressure and maximizing flow. Also, a military-grade type III hard coating is applied to the pump body to maximize durability.

BD’s Venom Lift Pump offers a drop-in solution that utilizes that ultra-quiet ball-bearing technology and with improved pressure regulation and efficiency that has enough fuel flow to support Stroker 900hp pumps. Rated at 165gpm, the Venom Lift Pump will support a single large CP3 or dual-fuel kits with stock high-pressure fuel pumps (HPFP).

With that being said, we had a donor truck local to me that features a pile of aftermarket parts with even more on the to-do list soon. Since more power is on its way, having a lift pump to keep up with the high-fuel demand was a must. This was a perfect opportunity to see if the new Venom Lift Pump BD now offers was worth it.

What Is Included?

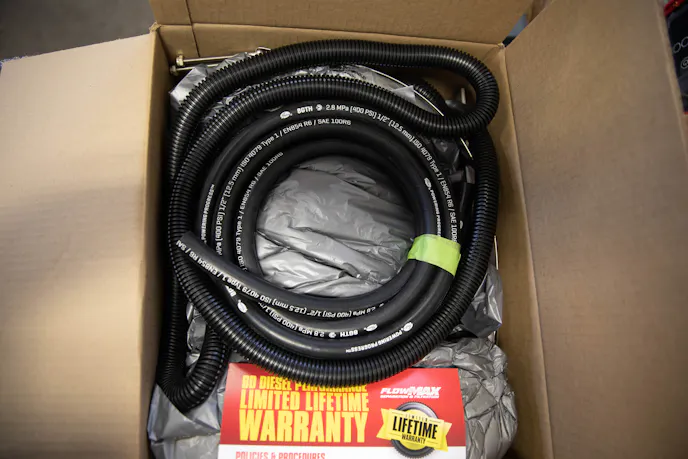

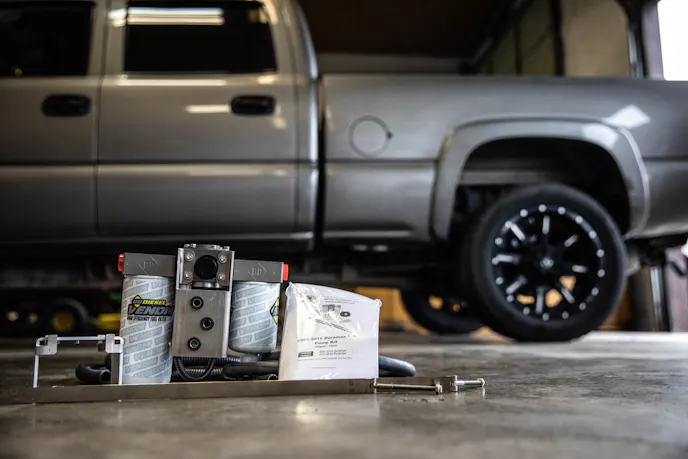

Excited to see what these new kits looked like, we tore the box open to see what was inside. On top of the protected pump was a baggie full of the hardware necessary to complete the install, a hose for your connections, a wiring harness to power the unit, and half of the bracketry to get this frame-mounted pump to the truck.

There are other options out there for lift pumps and with that being said, one of the top things that are brought up on lift pump kits is how they are mounted. We’ve seen pumps that are mounted with a drill and tap mounting plate, two plates that are sandwiched together against the frame keeping the pump tight to the frame, now this. BD’s new Venom kit features a rigid aluminum bracket that will be strapped to the frame.

My first thought is won’t this vibrate? Well, using their quiet vibration isolators not only allows for an easy installation but also a quieter drive. In previous lift pump models of theirs, they’ve had to use these straps against the electric motor and they have now gone away with that. They’ve come up with a better solution to mounting it to the frame and my only question is how will they hold up to the weather?

After all, it is aluminum and I’m hoping that it will withstand the winter weather when salt is laid down. This truck came from up north where the winter times are much harsher there than here in the midwest. The underneath of the truck is getting pretty nasty so it makes me wonder about the straps.

Underneath the hardware was the foam-protected lift pump. This kit includes an easily sourced 3-micron fuel filter and a 20-micron water separator filter. For those of you who don’t have a stock of filters to replace these, that is good news. Having the ability to go to the parts store and replace these filters is a huge plus.

Features


  • 1-1/8in diaphragm based fuel pressure regulation
  • Preset 8-10psi
  • Updated pump mounting bracket
  • Includes commonly sourced water separator & fuel filter
  • 165gph supports from stock up to 900hp
  • Hard coat billet pump body (military grade)
  • Quick connect fittings included – no cutting required
  • Ultra-compact design
  • Replacement fuel filter equivalent Donaldson P551315
  • Replacement water separator filter equivalent Donaldson P550550

How It’s Done

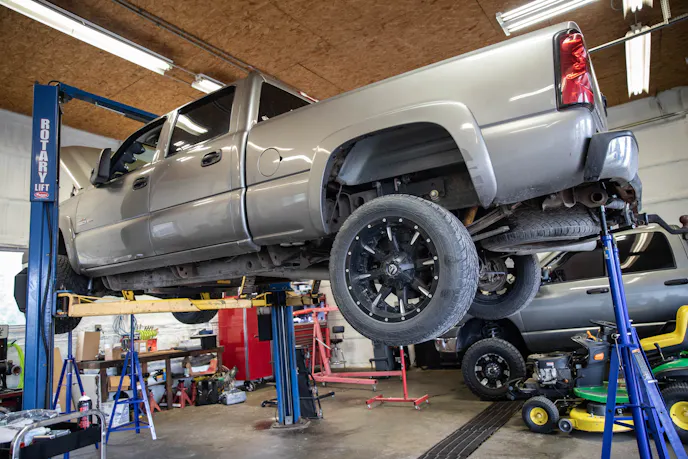

We pulled the truck up onto the lift and started scoping out an area to put the lift pump on. Traditionally, lift pumps are mounted on the outside of the frame especially on the Ram trucks, but these are different. Since the emergency brake cable is homed right on the outside of the frame rail that doesn’t give you a place to put it on the outside.

Not to worry. The inside of the frame rail is recessed and makes for a perfect spot to mount this up. The inside of the frame on most of the distance of the cab is open so wherever you want to establish your mounting point is fine. Keep in mind you have to plumb this to the tank so don’t get too carried away. Unless you’re doing a custom setup you can always get more hose and put it where you want.

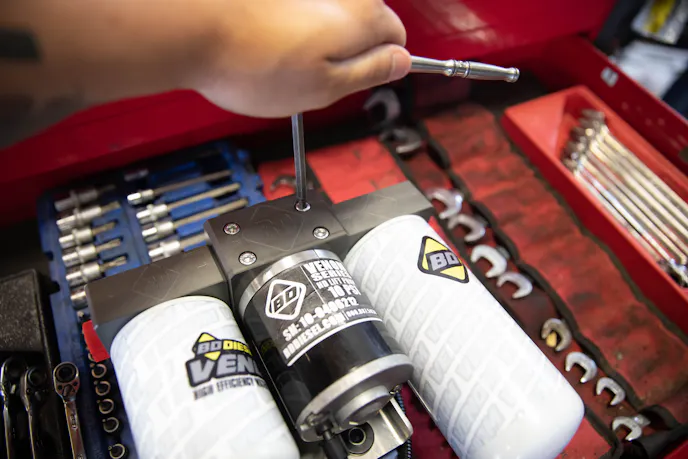

With a spot found, the first thing to do was remove the pump from the bracket. This is where the straps and provided bracketry come in. We put the bracket on the frame and secured it tightly with the aluminum straps. Once it is on, we put the pump back into its slot within the bracket. That’s it. With other lift pumps, sandwiching two plates together or drilling into the frame would require more time and tools. I like that this is so easy and doesn’t require a box full of tools.

With the pump on, the fittings could be fastened to the pump, and the connections above the fuel cooler and up to the engine can be done. This literally couldn’t have been easier. With our connections linked, we made a small mess when the factory lines were disconnected, but that is to be expected. With the plumbing done, all that was left was the wiring.

Using the wiring harness, we ran the wires up to power and ground under the hood and also utilized the provided relay and fastened it to the wiper cowl. With the connections made, it was time to check for power. Key on and it is alive. Another point I want to make on this lift pump is the noise. When people get lift pumps, not only do you hear about the mounting but you also hear about the sound they emit. You may enjoy it, but hearing a buzzing lift pump that is almost louder than the truck is the worst.

I can happily tell you that this ultra-quiet technology BD prides itself on is working. This pump is extremely quiet. Overall, this kit was flawless. The fuel pressure was in check, the sound wasn’t overbearing, the mounting solution was done in a few minutes, and this truck now has a reliable source of fuel.

We talked with the truck owner post-install as well as Ron Clift from BD. “These Venom pumps are legit. If your CP4 pump hasn’t failed yet, we have the solution. If you’re anywhere between stock horsepower and 900-horsepower, this is the pump for you,” Clift says. As for the truck owner, he’s onboard. “I’ve used different pumps before and while they do the same thing, I love how easy this install was and how quiet the pump is during operation. I’ll definitely be using these in the future at my shop.”

For more information about the products BD Diesel Performance has to offer, head on over to their website here. What do you think about this new Venom lift pump? Would you have one on your truck? Let us know in the comments below. For more parts reviews, truck features, and event coverage, stay tuned right here at Diesel Army.
