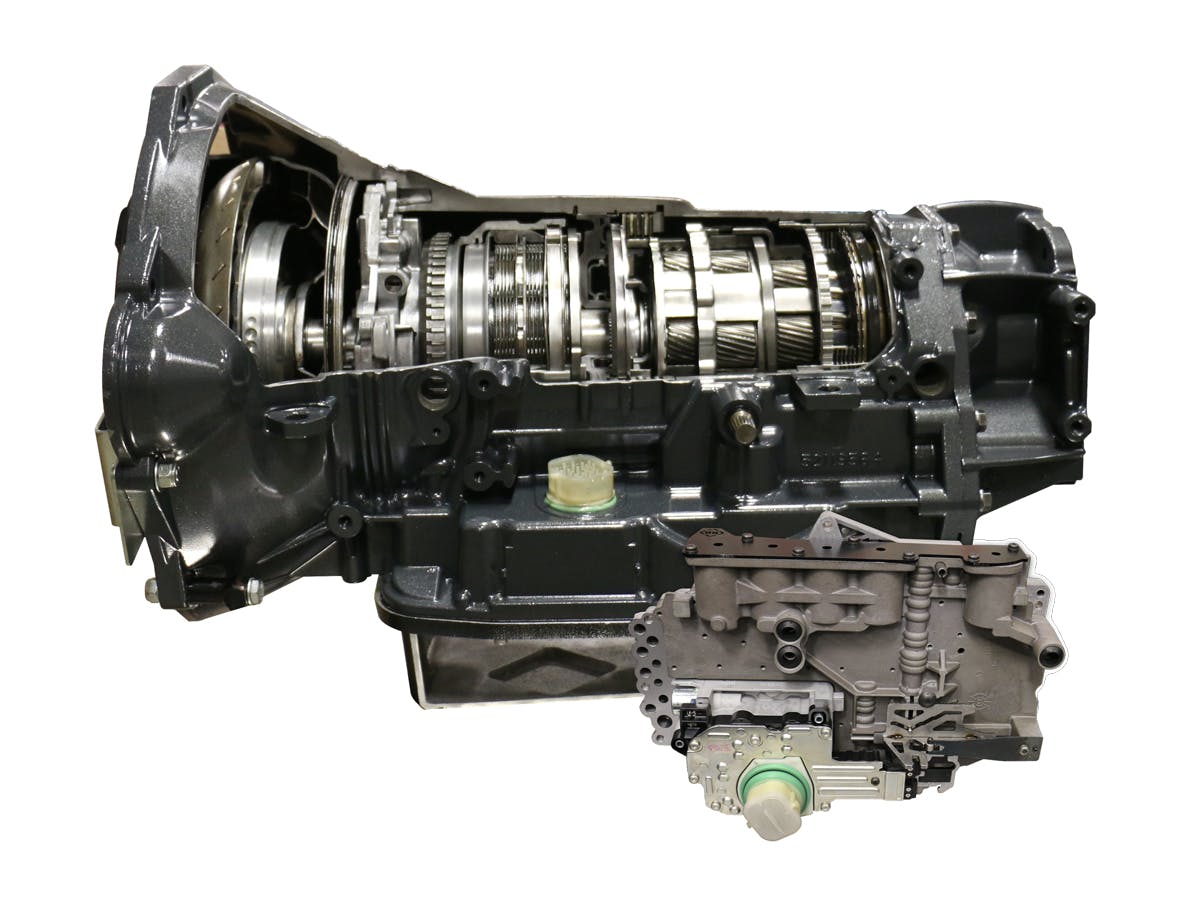

New from BD Deisel – a fully built 68RFE transmission for 2007-17 Cummins applications. This transmission comes with BD’s exclusive valve body separator plate gasket, increased clutch count, and much more. See more details below.
Official Release/Features:
- Exclusive BD designed valve body separator plate gasket eliminates damaging internal cross leaks
- Hard anodized valve body and new solenoid pack installed in every unit
- Heavy duty cam & roller design low reverse one way clutch
- New 4C billet spring retainer
- Steel girdle added to 2C piston to allow for more clutches and broader apply area
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Clutch count increased to hold high torque level – Over Drive 17% increase, Under Drive 20%, 2C 33% increase
- BD reinforced accumulator plate
- TCC limit valve machined and sleeved to address high wear area with in pump
- BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
- BD ProTect68 pressure control module ramps up line pressure to 250psi using MAP sensor to input load and adjust pressure required
