For everyone with 2018+ RAM trucks, there is no need to backpin or splice the OBD connector or remove the radio to diagnose, monitor, or update your truck. There is a fix. With EZ LYNK‘s new diagnostic cable that is compatible with the Auto Agent 2, you have full diagnostic support on 18+ RAM trucks. This cable features the standard OBD diagnostic port connection and a direct network connection.

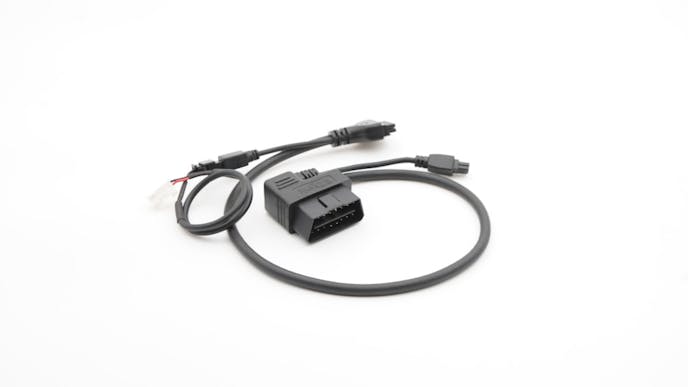

The Auto Agent 2 OBD Cable with 18+ RAM SGM Adapter (PN: 100EE00C09) will retail for $34.99. Warehouse pre-orders are shipping now; EZ LYNK recommends contacting your preferred warehouse distributor to place your order today while you can. This makes linking into these trucks much easier so these cables will go quick, I’m sure.
Installation
The cable attaches to the OBD Port and the SGM adapter plugs directly into the STAR connector CAN port under the dash. The STAR connector can be found on the far left side, underneath the dash, near the door frame. Two STAR connectors can be found side by side. The SGM adapter plugs into the Black and Green STAR connector. Once the Auto Agent 2 is secured with the supplied cable ties, you’re ready to connect and diagnose the vehicle with ease.
EZ LYNK’s Auto Agent 2 is making monitoring, diagnosing, and updating a vehicle with ease. To get ahold of your own today, be sure and check out their website. Stay tuned to Diesel Army for more of the latest products coming out day to day.
